Product model: HX-P4-16S
Physical point spacing: 4mm
Luminous point color: 1R1G1B
Drive mode: constant current drive

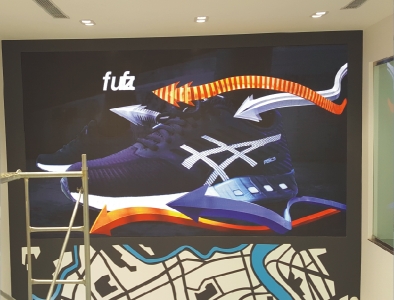

Product description: The current P4 lamp beads basically use surface mount 2020 (2121), and the stability is quite good. P4 accuracy is considered to be a higher level. Therefore, this model is used in some high-end restaurants, hotels, shopping malls, conference rooms, studios, TV stations, gymnasiums and other places, and it is quite popular.
Box size Dimension: 512mm*512mm
Quanty of Module: 16
Power supply: 5V/40A*2 pcs
Thermal discharge: fan 2pcs
Pixel per cabinet: 128*128
Best viewing distance: 4M～20M
Best viewing distance: 160°(W) 120°(H)
Ambient temperature Temperature: storage: -35℃～+85℃
Working:-20℃～+50℃
Relative humidity Opration humidity: 10%-95%
Screen thickness Thickness: 85mm
